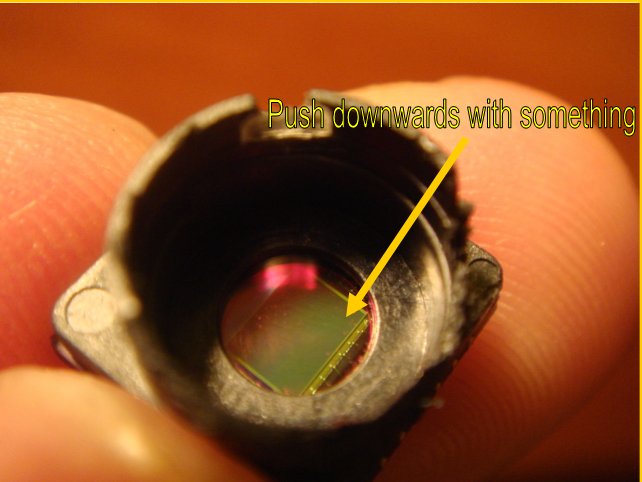

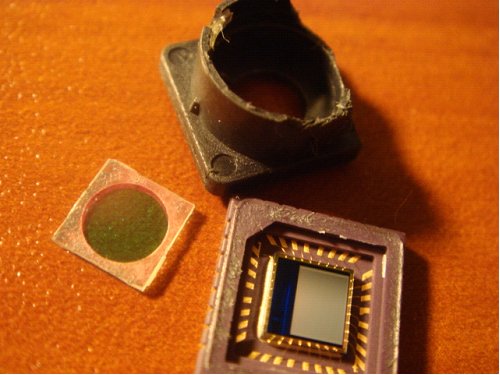

After pushing the part (b) away, take the lens out , you will be left with these . Open up the Philips semiconductor as shown on Method 1, then push the lens downwards and your lens will fall from the other side. Becareful do not scrath the IR lens.  Then follow Method 1 to continue.


·STEP 6        PLACING THE CAMERA ON THE CIRCUIT BOARD.

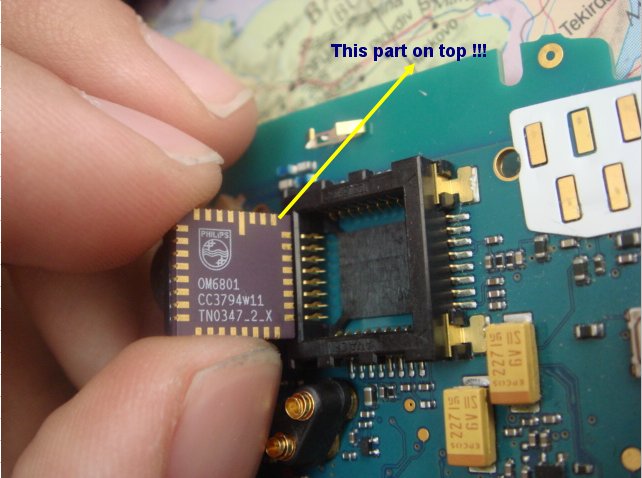

Now you can put the camera in it's original place on the circuit board., Make sure you place it exactly same as the picture. All writings should be horizontal to the circuit board.

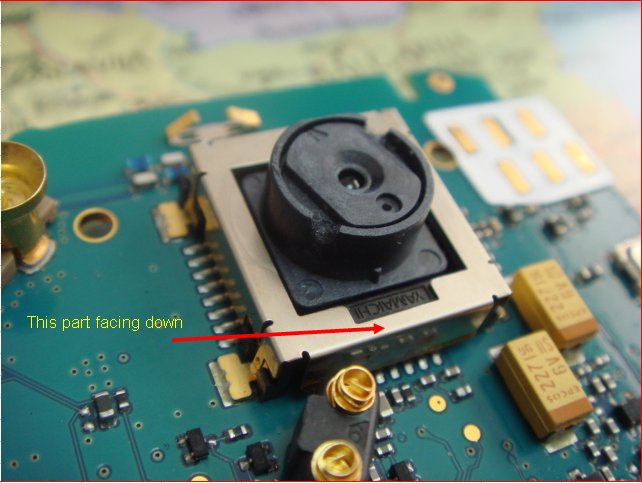

Place the Metal Protection as below :

**Method 2 : Difficult Method .but you can keep your IR filter :.But I don't recommend this method.

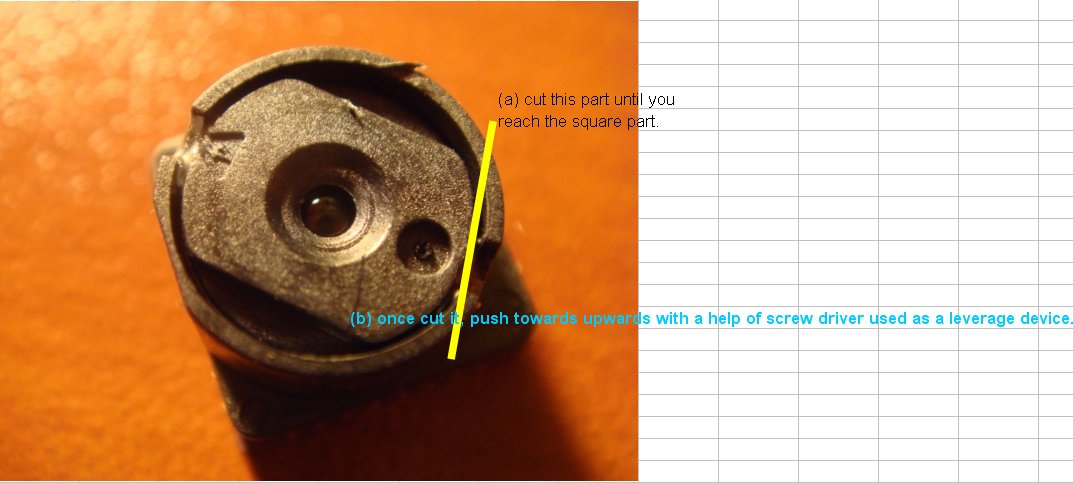

Take a knife or a plastic saw or a fle, start cutting from any side (a) until you reach the square part. Once you cut it, push the top part of plastic (b)upwards
